For the last couple of months I have been spending more time on the Linux side of my automotive setup again. CANcorder is still the place where I want to look at traffic, decode transport protocols, and make sense of what an ECU is doing. But the boring bench work around it still happens on Linux: bring the interface up, switch bitrates, generate load, watch for bus-off, capture a logfile, bridge SocketCAN into the rest of the tooling.
And as usual, the annoying part was not that Linux could not do it. Linux has excellent CAN support. SocketCAN is one of those subsystems that still feels refreshingly direct: open a socket, bind it to can0, read and write frames. The annoying part was that my daily workflow kept decomposing into little piles of shell incantations, Python scripts, ip link commands, candump, cangen, and one-off helpers that were never quite the shape I wanted.
So I cleaned that up.
The result is three small tools:
mcangen, a high-performance CAN frame generator.mcandump, a SocketCAN logger and CANcorder proxy.canconf, a trio of tiny tools: canconf (configure interfaces), canmon (passively monitor health), and cantalk (an interactive REPL for talking to ECUs).None of them are big frameworks. That is the point. They are the kind of tools I want to have installed on every Linux machine that might ever see a USB-CAN adapter.
Before anyone misunderstands this: can-utils is great. I still use it, and I am very glad it exists. candump, cansend, cangen, isotpsend, isotprecv — these are the tools that made SocketCAN approachable in the first place.
But once you start building your own diagnostic hardware and software around the bus, the gaps become more visible.
Sometimes I do not want “send random frames until I press Ctrl-C”. I want exactly one million frames, at a reproducible seed, with a sequence number in the payload, so I can prove where drops happened. Sometimes I want mixed standard and extended identifiers in the same run. Sometimes I want to simulate an ECU flashing session, with ISO-TP bursts, security access, pending responses, DTC handling, resets, and the kind of uneven traffic shape that stresses real tools.
And sometimes I want the generator to stop pretending everything is fine when the CAN controller goes bus-off.
That was the itch behind mcangen.
mcangen is essentially my version of cangen, written in Rust and tuned for the things I keep testing:
mcangen can0 -r 0 -n 1000000 --data-mode sequenceThat sends exactly one million frames as fast as the interface can take them, with an incrementing 64-bit sequence number in the payload. On the receiving side, any gap is a real event: a dropped frame, a lost TCP packet in a bridge, an overloaded logger, a firmware buffer problem, or whatever else is hiding in the path.
For maximum-rate mode, mcangen batches writes with sendmmsg(). For rate-limited mode it uses clock_nanosleep() for the coarse wait and a short busy-spin at the end, which is one of those slightly ugly but effective tricks that makes timing much less sloppy than a plain thread::sleep().
The other important mode is more domain-specific:
mcangen vcan0 --uds-flash -n 1That generates a complete UDS-style reprogramming session. Not just “some frames that look vaguely diagnostic”, but a session with tester and ECU arbitration IDs, diagnostic session control, ECU identification reads, security access, erase, multi-frame firmware transfer, DTC read/clear/verify, ECU reset, and optional OBD-II polling between sessions.
This is useful because UI and logger bugs often do not show up under uniform random traffic. They show up when the traffic has phases: slow setup, sudden bursts, long ISO-TP transfers, pauses, negative responses, resets, and then normal polling again. Real cars do not produce benchmark-shaped traffic.
There is also a quality-test payload mode for CANcorder: fixed ID, magic marker, sequence number, timestamp offset, test ID, checksum. Boring, deterministic, easy to validate. Exactly what a quality test should be.

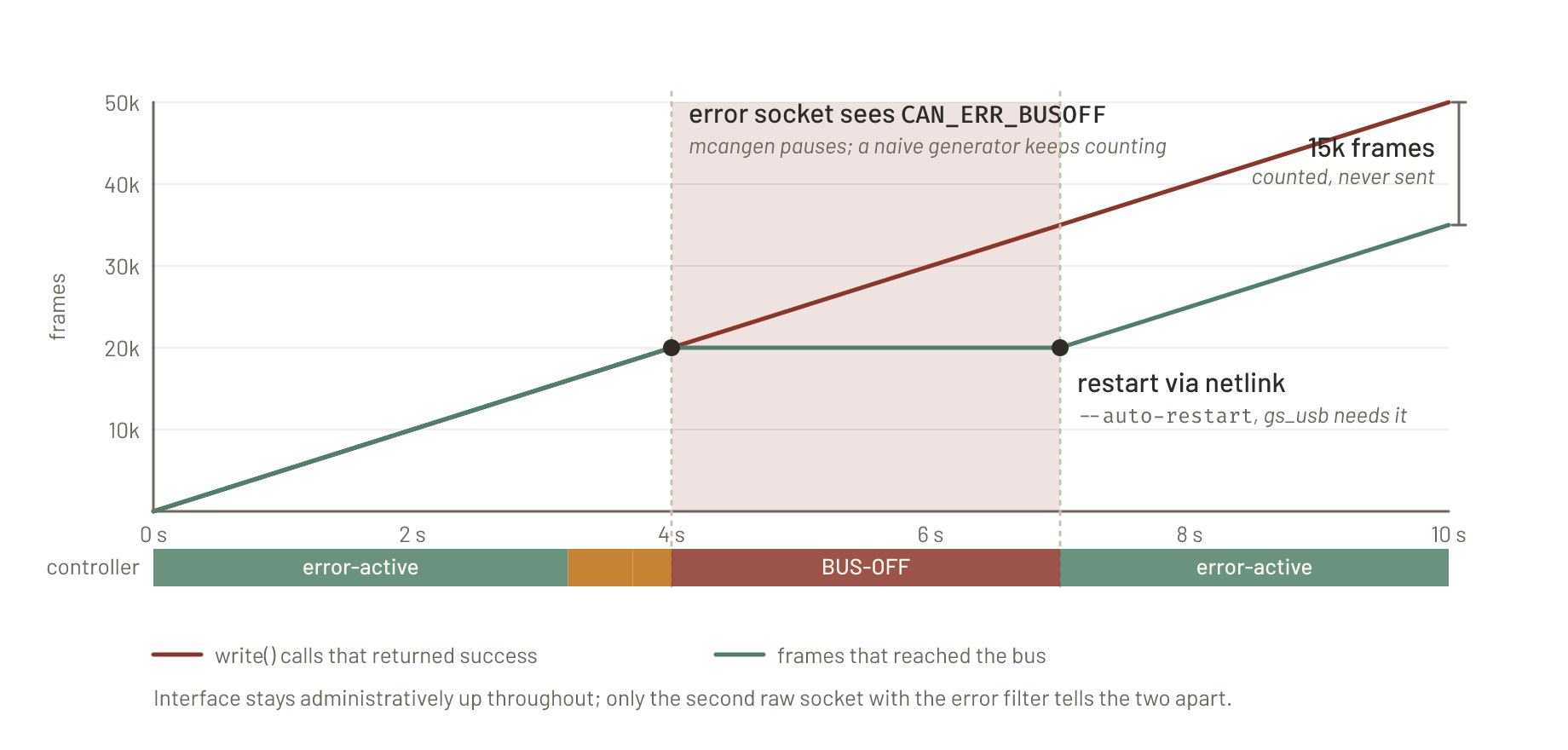

One surprisingly important part of mcangen is what it does when the controller goes bus-off.
The naive version of a CAN generator counts successful write() calls. That is not good enough. A SocketCAN interface can be administratively up while the controller is bus-off. In that state, a generator can happily keep counting frames that never reach the wire. If you are testing loss detection, that is worse than a crash, because it gives you a clean-looking lie.
mcangen opens a second raw CAN socket with an error-frame filter and watches for CAN_ERR_BUSOFF and CAN_ERR_RESTARTED. When bus-off happens, transmission pauses. With --auto-restart, it can cycle the interface via netlink for adapters whose drivers do not implement the normal restart path. That matters for the cheap and common devices, not just the nice lab gear.
This is the kind of detail that does not look exciting in a README, but saves hours on a bench.
The second tool is mcandump.
At first glance it looks like another candump clone:
mcandump can0It reads CAN and CAN-FD frames from a SocketCAN interface and prints them on the terminal with timestamps, IDs, data bytes, and ASCII. It can also write a candump-compatible logfile:
mcandump can0 --log-fileBut the real reason it exists is that it is also a CANcorder logger proxy. It publishes itself via Zeroconf as an ECUconnect logger, accepts TCP clients, and forwards each frame in the binary logger protocol that CANcorder understands.
That gives me a nice split:
The architecture is intentionally conservative. The CAN reader thread only reads frames and pushes them into channels. TCP clients get dedicated writer threads and their own queues, so a slow iPad on Wi-Fi does not block the raw CAN socket. Log writing runs in another thread. Terminal output runs at lower priority. The hot path is allowed to be boring.
mcandump also asks the kernel for hardware receive timestamps when available, falls back to software timestamps when not, and only falls back to userspace time as the last resort. For many diagnostic tasks that distinction is irrelevant. For latency and ordering work, it is not.
The interactive mode grew out of exactly the same irritation:
mcandump can0 --interactiveIt gives me scrollback, search by byte sequence, search by arbitration ID, and a live tail pane when I scroll away from the newest frames. Again, nothing revolutionary. Just the stuff I kept wanting while staring at a terminal full of hex.
The third piece is the least glamorous one, and perhaps the one I use the most. It is a single repo with three commands that sit at three different layers of the daily bench routine: configuring the interface, watching it, and talking to whatever is on the other end of it.
Configuring SocketCAN interfaces by hand is not hard, but it is tedious enough to invite mistakes:
sudo ip link set can0 down
sudo ip link set can1 down
sudo ip link set can0 type can bitrate 500000 dbitrate 2000000 sample-point 0.875 dsample-point 0.75 fd on
sudo ip link set can1 type can bitrate 500000 dbitrate 2000000 sample-point 0.875 dsample-point 0.75 fd on
sudo ip link set can0 txqueuelen 10000
sudo ip link set can1 txqueuelen 10000
sudo ip link set can0 up
sudo ip link set can1 upI do not want that in my shell history twenty times a day. I want this:
canconf 500k/2M@0.875/0.75canconf discovers CAN interfaces by ARPHRD type rather than by name, so it works with can0, vcan0, slcan0, and whatever naming policy the host happens to use. It can bring every interface down, bring them back up, set classic CAN or CAN-FD parameters, set txqueuelen, enable restart timers, enable listen-only mode, and then print what the kernel actually accepted.
The last part matters because CAN bitrates are not abstract numbers. They are derived from controller clocks and timing constants. Drivers round. Hardware differs. canconf bitrates reads the kernel’s reported bittiming_const and tells me what the interface can actually do, including whether CAN-FD data rates are supported.
canmon is the passive sibling:
canmonIt prints the current state once, then stays silent until something changes: state transition, configuration change, restart counter, or a burst of controller bit errors. That silence is deliberate. If a monitor prints constantly, I stop seeing it. If it only speaks when the bus changes state, I notice.
A typical session that catches a bus going sideways during a flash looks like this:
TIME IFACE STATE BITRATE Δerr/s Δbus/s restarts notes
12:04:31 can0 ERROR-ACTIVE 500k 0 0 0 initial · sp 0.875 · qlen 10000 · drv gs_usb
12:05:02 can0 ERROR-ACTIVE 500k/2M 0 0 0 CONFIG 500k → 500k/2M
12:07:18 can0 ERROR-WARNING 500k/2M 0 47 0 STATE ERROR-ACTIVE → ERROR-WARNING · BIT-ERRORS 47/s > 1/s
12:07:19 can0 ERROR-PASSIVE 500k/2M 0 128 0 STATE ERROR-WARNING → ERROR-PASSIVE · BIT-ERRORS 128/s > 1/s
12:07:20 can0 BUS-OFF 500k/2M 12 203 0 STATE ERROR-PASSIVE → BUS-OFF · BIT-ERRORS 203/s > 1/s
12:07:21 can0 ERROR-ACTIVE 500k/2M 0 0 1 STATE BUS-OFF → ERROR-ACTIVE · RESTART #1Six lines for an entire afternoon of bench work. The first row is the initial snapshot. The second is a reconfiguration when I switched from classic CAN to CAN-FD. Then nothing for two minutes — exactly the silence I want — until the bus starts complaining. The controller crosses error-warning, slides into error-passive, hits bus-off, and the kernel auto-restart driven by canconf … -r 100 brings it back to error-active a tick later. In a real terminal each STATE and BUS-OFF token is coloured by severity, so the bad rows jump out without having to read them.
During flashing work, the column I care about most is not usually packet-level RX/TX errors. It is the controller’s bus-error counter (Δbus/s above). A sudden rise there says “look at the physical bus” much more loudly than another decoded diagnostic response ever could.
The third command in the repo is cantalk. I added it once I noticed how often I was opening two terminals — one for isotpsend, one for isotprecv — just to send a single UDS request and look at the response. That ceremony adds up over a debug session, and it gets in the way of the kind of quick “poke an ECU and see what it says” interaction that a diagnostic shell should make trivial.
cantalk is a tiny interactive REPL. You give it an interface, set an arbitration pair, type hex, see the reply:
❯ cantalk can0
❯ :7E0
❯ 22 F1 90
← 7E8 62 F1 90 57 56 57 5A 5A 5A 31 4B 5A 31 47 30 30 30 30 30 31
-> b..WVWZZZ1KZ1G000001By default it uses the in-tree can-isotp kernel module (mainline since 5.10), so the kernel handles segmentation, flow control, and reassembly. You only ever see complete messages, even when the response is a multi-frame block. For ECUs that do not speak ISO-TP, or when I just want to peek at raw frames, --raw switches to a bare AF_CAN socket and collects every matching frame within a 250 ms quiet window.
The arbitration pair is the part that used to annoy me most. Diagnostic addresses come in pairs — tester request, ECU response — that are easy to swap by accident. cantalk accepts a single TX and auto-derives RX with the conventions everyone uses anyway: TX+8 for 11-bit IDs, J1939-style source/target swap for 18DA<target><source> 29-bit IDs. The last pair used on each interface is persisted to $XDG_STATE_HOME/cantalk/state.json, so next time cantalk can0 starts with the same TX/RX you ended with.
On a TTY the prompt is anchored to the bottom of the terminal in a fixed three-line frame, with the request/response log scrolling independently above it. That sounds gimmicky until you have used a diagnostic shell where the prompt keeps disappearing every time a response arrives. The interaction model deliberately mirrors the term REPL in Swift-CANyonero, which is what CANcorder uses on macOS — same muscle memory across both sides of my workflow. Pipe stdin or pass --plain for a one-prompt-per-line mode when scripting.
The interface has to be up before you start. That is canconf’s job.

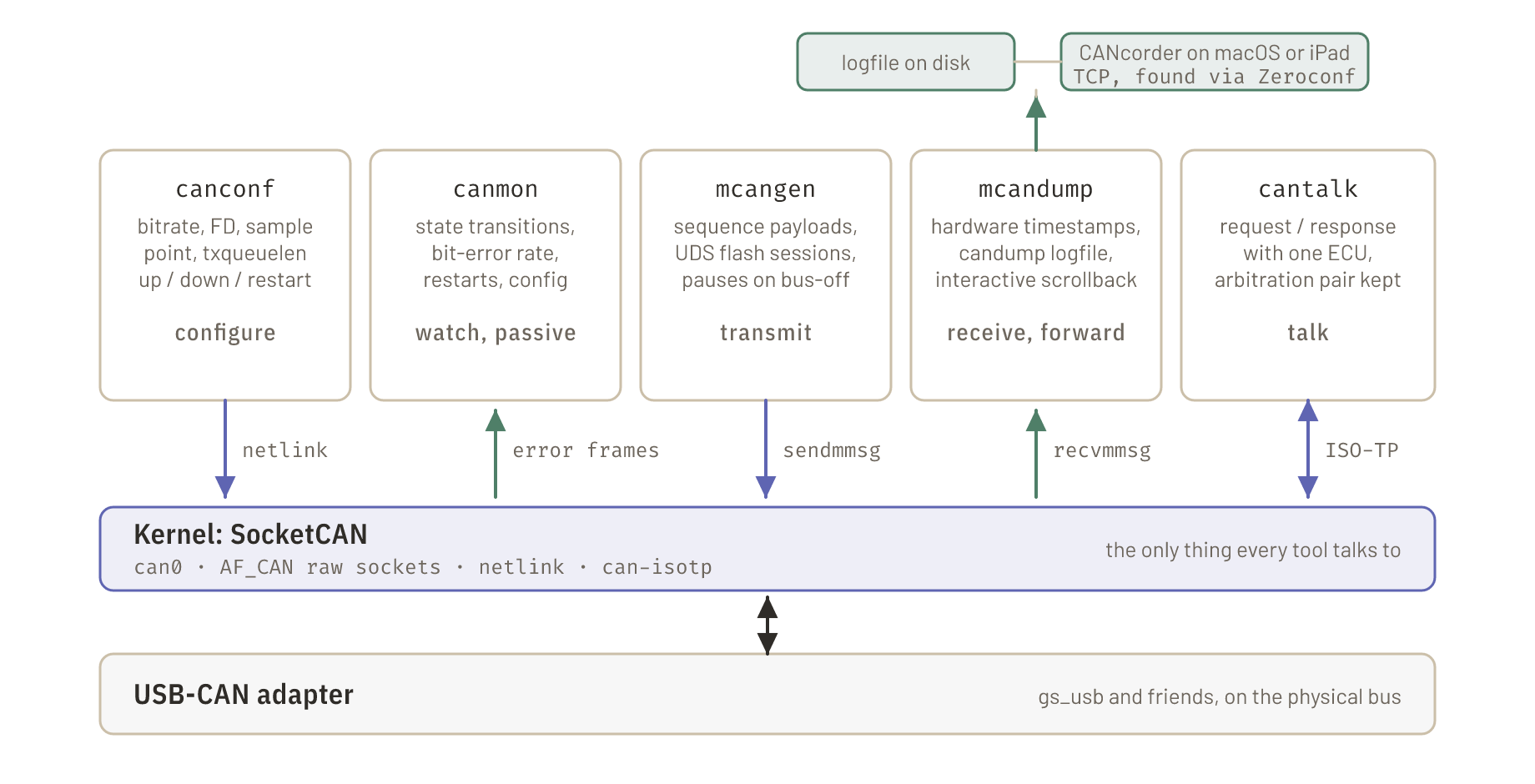

I could have built one big canlab command with subcommands. I considered it for about five minutes and then decided against it.
These tools sit at different layers:
canconf configures the interface.canmon watches the health of the interface.cantalk talks to a single ECU interactively.mcangen injects traffic.mcandump captures traffic and forwards it to CANcorder.Keeping them separate makes them easier to combine with the rest of the Linux ecosystem. I can run canmon in one terminal, mcandump in another, and start or stop mcangen from a test script. I can use canconf without caring whether CANcorder is even installed. I can pipe logs into existing tools. The boundaries are boring, which is usually a good sign for command-line software.
A typical bench session now looks like this:
canconf 500k/2M@0.875/0.75 --berr -r 100
canmon
mcandump can0 --log-file
mcangen can0 --uds-flash -n 3 --speed 2.0CANcorder discovers mcandump automatically, I get a logfile on disk, canmon tells me if the controller gets unhappy, and mcangen gives me repeatable traffic that looks enough like real diagnostic work to trigger the same classes of bugs.
This is not a grand new architecture. It is more like sharpening the tools around an existing one. CANcorder is the visible part, but the Linux side is where the wire meets the machine, and I want that side to be just as deliberate.
What I like about this little toolbox is that it removes ceremony. Less remembering ip link syntax. Less wondering whether the generator actually sent what it claims. Less guessing whether the logger or the UI dropped a frame. Less staring at a silent bus-off controller while a test keeps “passing”.
Automotive diagnostics already has enough uncertainty. The plumbing should not add more.
